Model：CC-6207
PATENT-NO.198076
Description
- The most heavy duty model in vertical sealer.
- Manual or powered elevation (optional).
- Features close to CC-6202.
- Fully gear drive assures long service life and superior sealing quality.
- Height of conveyor from floor 400mm. (Custom height is available).
- Seals bag height range 500–1000mm.
- Suit with very large bag sealing such as chemical fertilizer bag feed bag, rice bag and other heavy duty granular powder package bag sealing.
- 1 phase, 220V power control.
- Standard feed fence length is 200cm. Extended length (optional).
Specification
| Max.conveyor belt load | 100 kg |
| Teflon band size (W×L) | 15×750 mm |
| Conveyor belt size | customized |
| Nylon band (W×L) | 5×425(1000) mm |
| Conveyor speed | 0–10 M/min |
| Electricity | 220 V, 1PH |
| Power | 1060(1660) W |
| Motor | 150 W |
| Conveyor table height adjustment | 500–1000 mm |
| Heating temp range | 0–399 ℃ |
| N.W/G.W | 80/100(85/105) kg |
| Machine dimensions (L×W×H) | 80(100)×70×170 cm |
| Packing dimension (L×W×H) | 90(110)×80×180 cm |
- All specifications and design characteristics shown in this catalogue are subject to change without notice.
- Custom specifications are available to meet specific requirements.
- Bag capacity varies with product specific weight.
- ( ) represents machine length with date coder.
Standard Accessories
- Operation manual, Fuse, Sealing band (Choice of stainless steel or Teflon band), Tool box and tools.
Optional Accessories
- Counter：
- Mechanical 4-digit type: For indicating the sealed products.
- Alarm type: LED displays the single lot number. Once quantity reaches, alarm sounds.
- Double display counter: LED displays the total quantity and single lot number. Once quantity reaches, alarm sounds.
- Direction Of Feed: A reversible feed is available. (Feed from right to left)
- Stainless Steel Machine Frame: Sealing machine series with stainless steel machine is available.

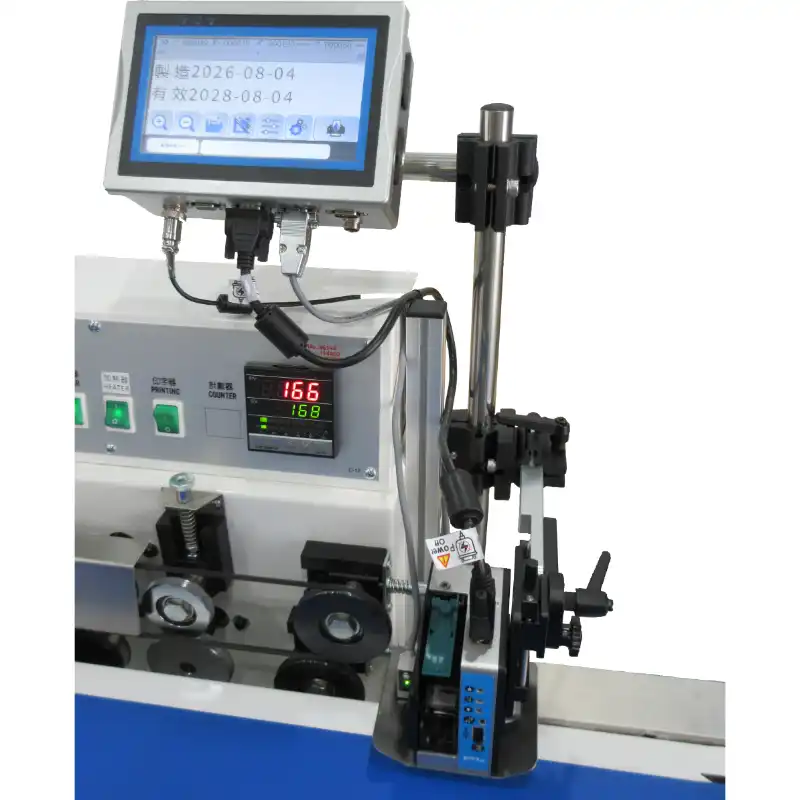

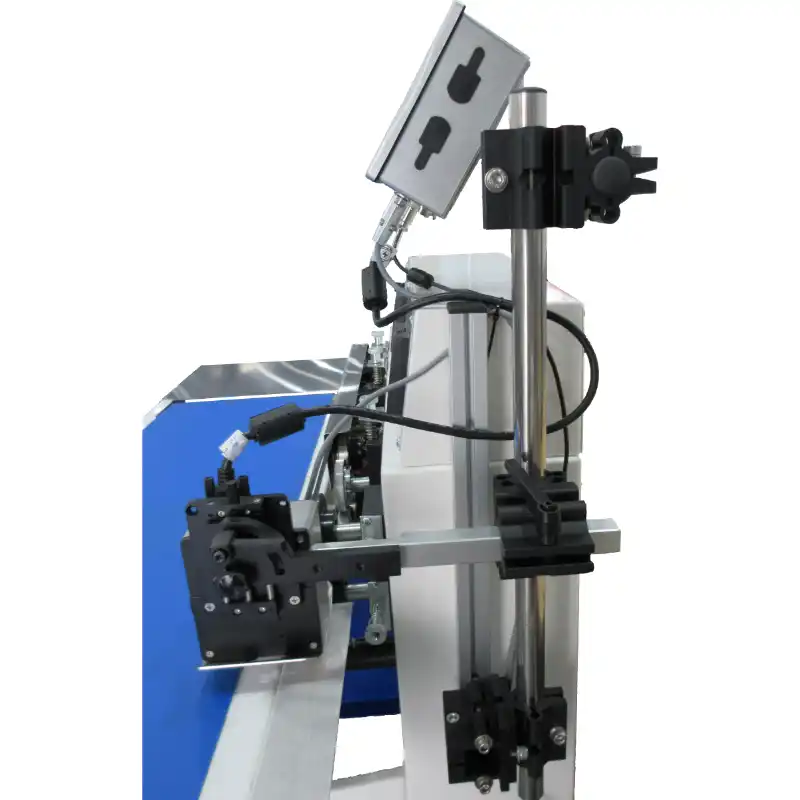

Coding Printers
After sealing, you can instantly print the information you need—whether it’s multilingual text, QR codes, or barcodes, all displayed with clarity. With print heights ranging from 1mm to 12.7mm, both small and large fonts are easily handled. Combined with water-based or oil-based inks, it adapts to a wide variety of surfaces, ensuring markings that are durable, professional, and reliable.

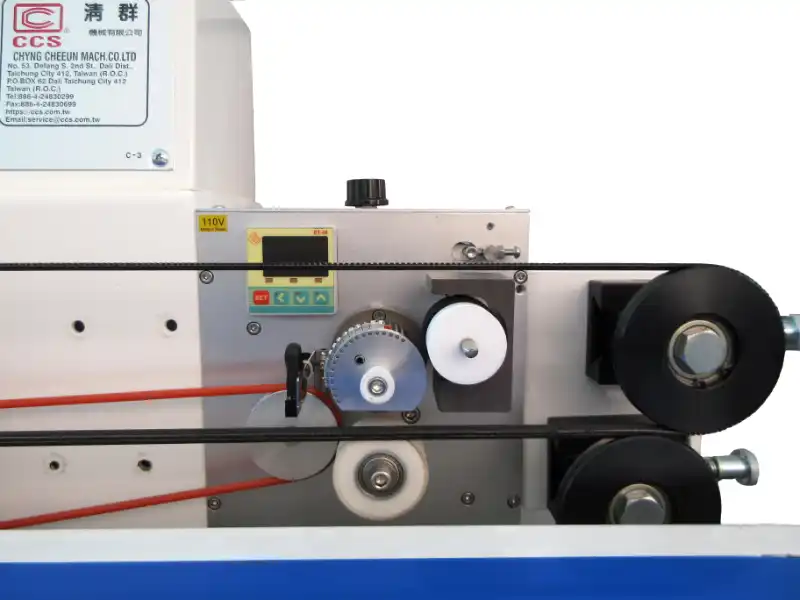

Date Coder
For printing the manufacturing date, storage duration, lot number and weight etc. Standard printing capacity 28 words. (Double lines printing) (Choice of bronze, steel, or aluminum words) Custom words and logo are available.
