Model：CC-7209
PATENT-NO.15114/114403/170783
Description
- Mounted with an exclusive suction device for fully sucking air out of the bag before sealing. Virtually extends expire date, reduces package volume and saves storage space.
- Standard design with fixed stand.
- Fully gear drive assures long service life and superior sealing quality.
- Equipped with printer for printing date, lot no…etc.
- Extensible stand (optional). Can be moved into the machine frame when not in use for saving space.
- Conveyor stand adjustment is fast accomplished in only one second.
- Features same as CC-7203, but except this machine has different structure, vacuum suction device and variable speed unit.
Specification
| Max.conveyor belt load | 20 kg |
| Steel band size (W×L) | 10×1250 mm |
| Conveyor belt size (W×L) | 200×2250 mm |
| Nylon band (W×L) | 5×690(1250) mm |
| Conveyor speed | 0–10 M/min |
| Electricity | 110/220 V, 1PH |
| Power | 1600(1700) W |
| Motor | 90 W |
| Conveyor table height adjustment | 0–70 mm |
| Heating temp range | 0–399 ℃ |
| N.W/G.W | 100/130(110/140) kg |
| Machine dimensions (L×W×H) | 130×70×100 cm |
| Packing dimension (L×W×H) | 130×80×115 cm |
- All specifications and design characteristics shown in this catalogue are subject to change without notice.
- Custom specifications are available to meet specific requirements.
- Bag capacity varies with product specific weight.
- ( ) represents machine length with date coder.
Standard Accessories
- Operation manual, Fuse, Sealing band (Choice of stainless steel or Teflon band), Tool box and tools.
Optional Accessories
- Counter：
- Mechanical 4-digit type: For indicating the sealed products.
- Alarm type: LED displays the single lot number. Once quantity reaches, alarm sounds.
- Double display counter: LED displays the total quantity and single lot number. Once quantity reaches, alarm sounds.
- Direction Of Feed: A reversible feed is available. (Feed from right to left)
- Stainless Steel Machine Frame: Sealing machine series with stainless steel machine is available.
Coding Printers
After sealing, you can instantly print the information you need—whether it’s multilingual text, QR codes, or barcodes, all displayed with clarity. With print heights ranging from 1mm to 12.7mm, both small and large fonts are easily handled. Combined with water-based or oil-based inks, it adapts to a wide variety of surfaces, ensuring markings that are durable, professional, and reliable.
Date Coder
For printing the manufacturing date, storage duration, lot number and weight etc. Standard printing capacity 28 words. (Double lines printing) (Choice of bronze, steel, or aluminum words) Custom words and logo are available.

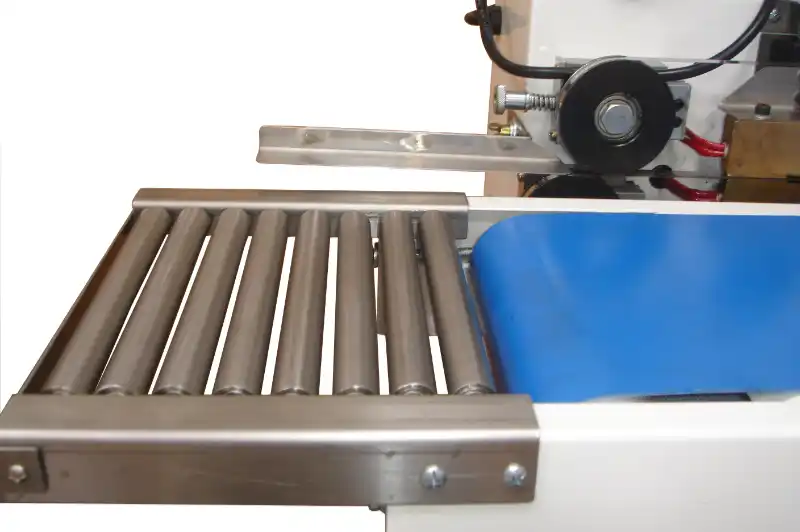

Drum type Conveyor Table Position Plate
Easy to convey heavy duty package to seal.
